Vacuum Generator Vacuum Ejector Pump Compressed Air Vacuum With Nozzle And Muffler

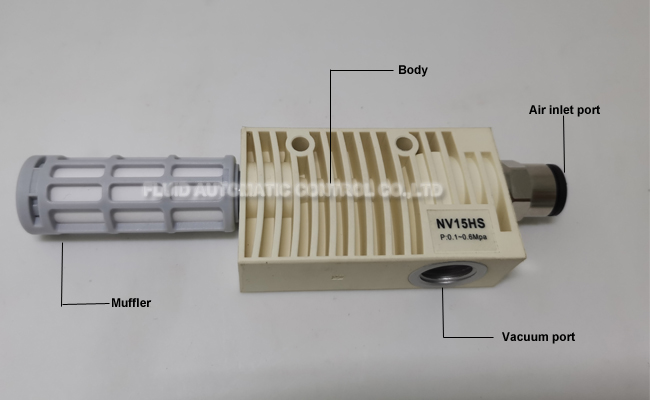

NV series vacuum ejector with high temperature resistant alloy material body,brass nozzle diameter 0.5,1.0,1.5 e.g NV-15HS
Quick Detail:
* NV base type vacuum generator
* With high strength, acidproof and alkali-resisting alloy material
* Compact design,light in weight,flexible application
* Nozzle Dia 0.5,1.0,1.5
* Pressure switch can be attached with
* With silencer,low noise
* Stable design,long service life
Applications:
NV Series vacuum ejector used widely in automotive industrial,chemical industrial,glass manufacturing,automation system mechanical,electronics,packing system, printing, plastic, robot automation system etc
Specifications:
| NV | 15 | H | S | CK |
| NV Series | Nozzle Diameter:
05-φ0.5mm
10-φ1.0mm
15-φ1.5mm | H: High vaccum type(92kPa)
L: Large flow type(57kPa) | Rated Air Supply Pressure:
S: 5 bar
R:3.5bar | Pressure Switch:
Blank: None
CK: With Adjustable Magnet Switch |
| Model | Nozzle Diameter
(mm) | Air pressure
(bar) | Max. vacuum
-Kpa | Max.Vacuum flow
NL/min | Air Consumption
NL/min | Noise
dB(A) | Tube Diameter(mm) |
| Air inlet port P | Vacuum port V |
| NV05H | 0.5 | 5.0 | 87 | 8 | 12 | 68 | 8 | 8 |
| NV10H | 1.0 | 5.0 | 92 | 29 | 44 | 68 | 8 | 8 |
| NV15H | 1.5 | 5.0 | 92 | 63 | 100 | 72 | 8 | 8 |
| NV05L | 0.5 | 5.0 | 57 | 10 | 13 | 68 | 8 | 8 |
| NV10L | 1.0 | 5.0 | 57 | 36 | 44 | 68 | 8 | 8 |
| NV15L | 1.5 | 5.0 | 57 | 95 | 100 | 72 | 8 | 8 |
Sensor switch:
| Item | NV-CK(Adjustable sensor switch) |
| Working Medium | Air (Vacuum) |
| Pressure (-kPa) | 40~60 |
| Amibent Temperature | 0~60℃( not freezing) |
| Repeated accuracy (-kPa) | ±5 |
| Working Voltage (V) | DC24V |
| Load current (MA) | 40 max |
| Wire effective length (M) | 1 |
