In Line Pulse Jet Valve

Name: In Line Pulse Jet Valve
Brand: FLUIDAC or OEM
Price: 20 USD

Place of Origin : Ningbo China(Mainland)

Brand Name : FLUIDAC or OEM

Certification : ISO9001

Model Number : SCG353A044

MOQ : 5 piece

Price : USD20--

Packaging Details : Boxes, Cartons,Wooden cases,Pallets

Delivery Time : Within 20 days after receiving payment or deposit

Payment Terms : TT Advance/30% deposit,70% by copy Bill oflading,Western Union,Paypal

Supply Ability : 10000 Pieces Per month

Nominal diameter : 20mm-75mm

Current : 0.8A|0.46A|0.23A

Feature : Right Angle / In Line

Material : Stainless steel

Product name : Pulse Jet Valve

Voltage : AC110V|AC220V|DC24V

Working Medium : Clean air

Working Pressure : 0.4~0.6Mpa

Contact Now

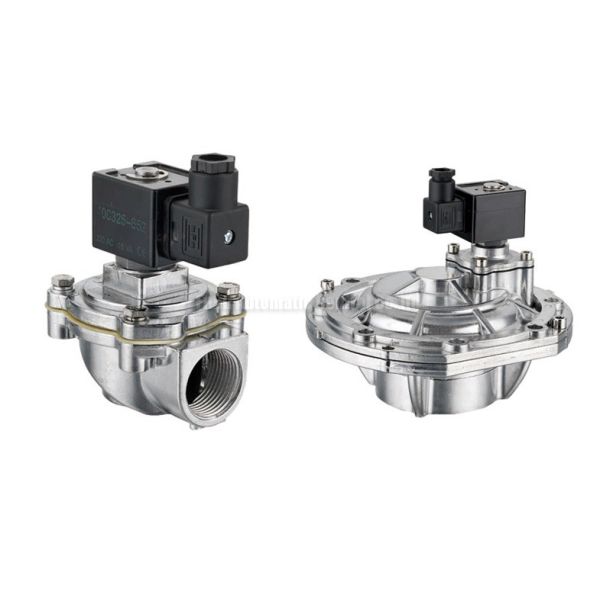

ASCO Right Angle / In Line Pulse Jet Valve 0.4-0.6Mpa G3/4"-G3" SCG353A044

SCG series ASCO type right angle and in line remote pilot pulse jet valve working pressure 0.4~0.6Mpa,DN25~DN75,Port size G3/4”~G3” e.g SCG353A044

Quick Detail:

* SCG Series ASCO type right angle and in line remote pilot pulse jet vavle
* Valve surface embalmed,non-shedding coat
* DN20mm~DN75mm
* Right angle valve body or in line valve body
* Special stainless steel piston/Diaphragm
* High quality TPE piston/Diaphragm,long service life
* Wide range of working temperature
* Seal Material NBR standard
* Outstanding airproof performance
* With excellent flow liquidity
* High flow rate CV,heavy duty
* Fast respond,low noise,low consumption
* Easy and convenient for maintenance
* Stable design,long serive life

Applications:

SCG series ASCO type remote pilot pulse jet valve used widely in Ventilation and dust removal purification of industrial bolier,Iron and steel industrial, metallurgy, foundry, chemical, building material,machinery,rubber industrial etc

Specifications:

Working Pressure (Mpa)	Working Medium	Voltage	Current	Temperature Level	Relative Humidity of Air	Protection Class	Diaphragm life
0.4~0.6	Clean air	DC24V	0.8A	–25~80℃ –25~150℃ –25~230℃	≤85%	IP65	One million blows or 3years
		AC110V	0.46A
		AC220V	0.23A

Model	Orifice Size	Flow coefficient	Pressure(Bar)
Model	Metric Size/mm	M³/h	Min.	Max.
SCG353A043	25	14	0.3	8.5
SCG353A044	25	23	0.3	8.5
SCG353A047	52	46	0.3	8.5
SCG353A050	66	77	0.3	8.5
SCG353A051	66	92	0.3	8.5
SCG353B060(In line type)	75	170	1	6

In Line Pulse Jet Valve

NO	Name	Material instruction
1	Coil	Good quality wire
2	Pilot kits	430FR Stainless steel
3	Small cap	ADC aluminium
4	Diaphragm kits	Imported NBR
5	Up cap	ADC aluminium
6	Big spring	321 stainless steel
7	Fastener	302 stainless steel
8	Diaphragm kits	Imported NBR
9	Valve body	ADC aluminium

In Line Pulse Jet Valve
Solenoid pulse jet valve, pulse jet valve, Diaphragm Dust collector
